Qingtai Ceiling Grid Systems: Precision Engineered, Perfectly Priced.

At Qingtai, we don’t just manufacture ceiling grids—we deliver complete ceiling solutions that integrate flawlessly with various panels, offering exceptional quality and unbeatable value. With over 20 years of expertise as a leading building materials producer in China, we operate multiple smart factories spanning tens of thousands of square meters, enabling us to offer top-tier products at highly competitive prices.

Online Consultation

Instant Inquiry

Two Systems. Global Standards. Local Pricing.

We supply both Metric (600mm) and Imperial (610mm / 24″) grid systems, designed to meet international standards while remaining fully compatible with regional panel sizes including mineral wool, fiberglass, calcium silicate, and metal panels.

Metric System

Ideal for: 595×595mm / 600×1200mm

Best paired with: Qingtai Mineral Wool, Fiberglass, and Calcium Silicate Panels

Series Available: 30 | 32 | 32 Narrow Flange

Imperial System

Ideal for: 603×603mm / ~1219×603mm

Compatible with: Qingtai and major international panel brands (e.g. Armstrong)

Series Available: 30 | 32 | 38 (Heavy-Duty)

What Makes Qingtai Grids the Smart Choice:

High-quality galvanized steel with premium painted coating for enhanced rust resistance
Tool-light, snap-fit design for faster installation and reduced labor cost
Narrow flange and flat profiles available for a clean, modern look
Best value without compromising quality—the most cost-effective brand in China

Qingtai Ceiling Grid System: Product Details for Grids & TilesProduct Specifications:

Product Name	Series	Thickness (cm)	Packaging	Specification (mm)
Mineral Wool Board	3510 Flat Panel	1.4	14 pcs/case	595×595 / 603×603 / 600×1200
	711 Flat Panel	1.4	14 pcs/case	603×603
	Rain Ice Flower Flat Panel	1.4	14 pcs/case	603×603
	3510 Narrow Edge Tegular	1.4	14 pcs/case	595×595
	3510 Wide Edge Tegular	1.4	14 pcs/case	595×595
	Sandblasted Perforated Narrow Edge Tegular	1.4	14 pcs/case	595×595
	Sandblasted Perforated Flat Panel	1.4	14 pcs/case	595×595
Fiberglass Panel	Plain Flat Panel	1.5	20 pcs/case	595×595
	Dot-coated Flat Panel	1.5	20 pcs/case	595×595
	Dot-coated	1.5	20 pcs/case	595×595
	Narrow Edge Tegular	1.5	20 pcs/case

Perforated Calcium Silicate Ceiling Tiles Series

Name	Pattern	Specification (mm) (L×W×Thickness)	Packaging
Calcium Silicate Ceiling Tile	Starry Sky Series	595×595×5mm	12 pcs/case
	Starry Sky Series	595×595×6mm	10 pcs/case
	Starry Sky Series	595×595×8mm	8 pcs/case
	Starry Sky Series	603×603×5mm	12 pcs/case
	Starry Sky Series	603×603×6mm	10 pcs/case
	Starry Sky Series	603×603×8mm	8 pcs/case
	Zero Point Series	603×603×5mm	12 pcs/case
	Perforated-6mm	595×595×5mm	12 pcs/case
	Perforated-6mm	595×595×6mm	10 pcs/case
	Perforated-6mm	1195×595×6mm	10 pcs/case
	Perforated-6mm	595×595×8mm	8 pcs/case
	Perforated-8mm	1195×595×8mm	8 pcs/case
	Perforated-8mm	595×595×10mm	6 pcs/case
	Perforated-8mm	1195×595×10mm	6 pcs/case
	Perforated-8mm	595×595×12mm	4 pcs/case
	Perforated-8mm	1195×595×12mm	4 pcs/case

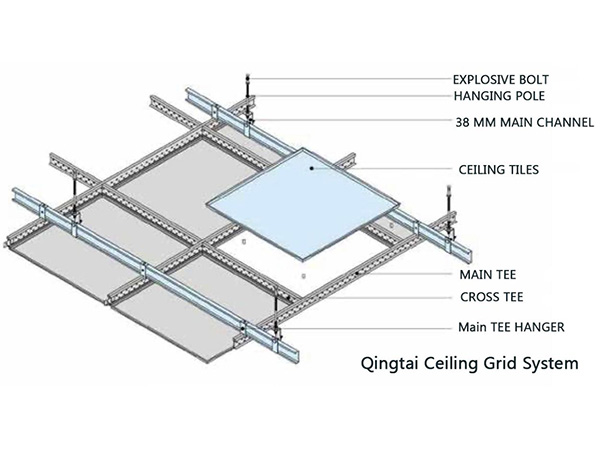

Qingtai Suspended Ceiling Grid System

Core Definitions

Series Code (e.g., 30/32/38): Refers to the overall height (mm) of the grid member.

Bottom Width: Except for the narrow-flange series (14mm), all others are 24mm.

Absolute Rule: Metric and Imperial systems must not be mixed.

Core System Specification Comparison Table

System Classification	Grid Spacing	Main Tee Length	Cross Tee (Small T) & Compatible Tile Size	Cross Tee (Medium T) & Compatible Tile Size	Applicable Panel Types
Metric System	600mm	3000mm	600mm → 595×595mm	1200mm → 1195×595mm	Mineral Fiber, Calcium Silicate, Fiberglass Panels
Imperial System	610mm (24")	3050mm (120")	610mm (24") → 603×603mm	1220mm (48") → ~1219×603mm	Mineral Fiber, Calcium Silicate, Metal Panels

✅ Why Qingtai?

? Perfect compatibility with Qingtai and international panel brands

⚡ Quick and easy installation, minimizing material waste

? Complies with global building standards

? Export-ready packaging with OEM/ODM support

? Custom Solutions & Free Design Service!

We provide custom-sized grid systems and one-on-one design consultation—completely free. Share your drawings or requirements with us, and we will tailor a solution that fits your exact needs.

? Let’s Build Something Great Together.

Choose Qingtai for ceilings that look professional, install smoothly, and come at an unbeatable price.

? Contact us today for a quote, sample, or a free design consultation!
